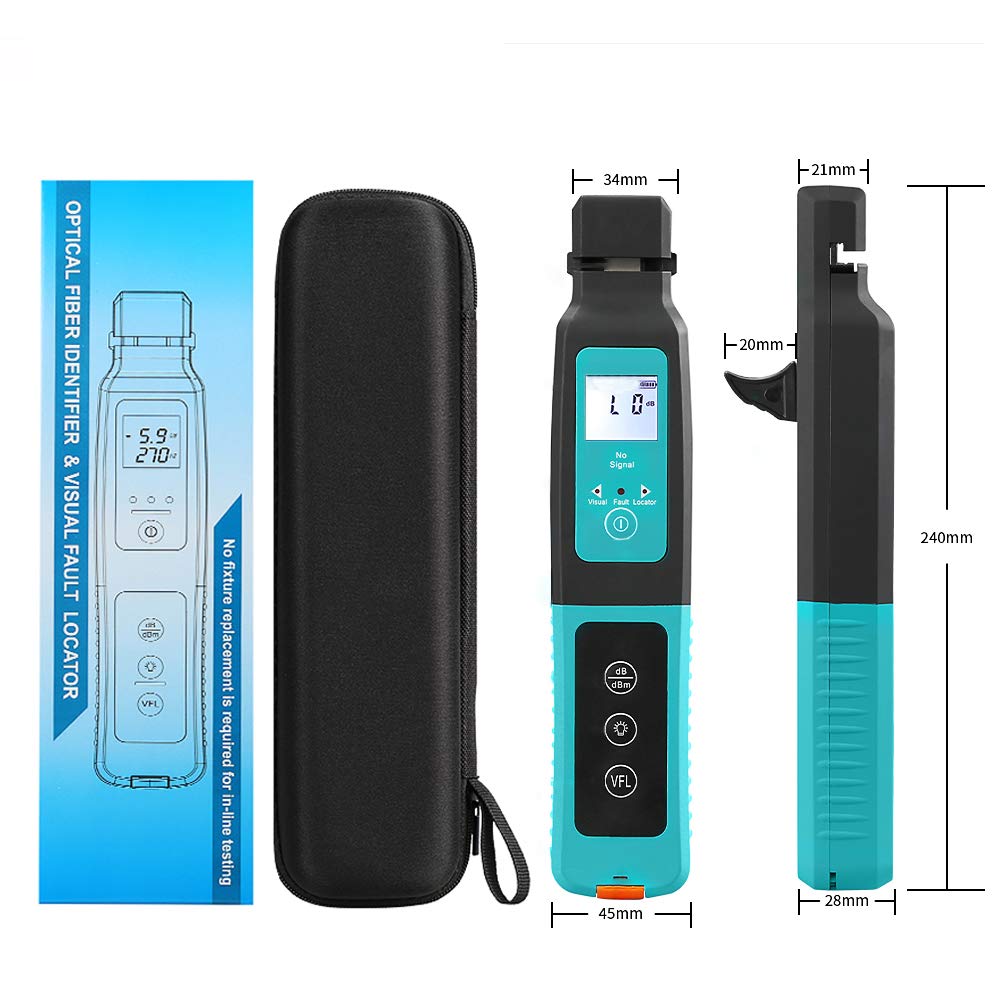

Optical Fiber Identifier with Wave Respond 800-1700nm Built in VFL FTTH Tool O496
Optical Fiber Identifier with Wave Respond 800-1700nm Built in VFL FTTH Tool O496
Indicate the signal directions and power in fiber,displays the relative core power.Macro bends are the use of fiber-optic bending leak out when the weak optical signal,optical signal to detect the direction and intensity.Does not damage opticla fiber,without interrupting communications.If you want to measure accurate power, please choose a power meter
Indicate the signal presence or absence(Live or dark fiber)
Efficiently identifies the traffic direction and frequency tone (270Hz, 1KHz, 2KHz) with audible warning
Build in VFL red light source can measure the distance is about 10-15 kilometers.
Lifetime Friendly Customer Service,if have problem,pls contact us.
Tips:
It Indicate the signal directions and whether have power in fiber,it can't measure accurate power.If you want to measure accurate power,please choose a power meter
Identified Wavelength Range:800-1700 nm
Insertion Loss:1.0dB
Fiber Type:�� 3mm Fiber
Identified Signal Type:270Hz/1KHz/2KHz
Display Type:LED
Detector Type:1mm InGaAs
Minimum detection power:-35dBm(1550nm) -30dBm(1310nm)
Center Wavelength:650nm
Output Power:10mW
OperatingTemperature: 0~+50��
Storage Temperature:-20~+60��
Weight:200g
Dimension:230*43*48mm
Applications
Telecom Maintenance
CATV Maintenance
Fiber Optic lab testing
Other Fiber Optic Measurements
Packaging including:
Optical Fiber Identifier, User Manual( not including battery)
