Cardioid Condenser Microphone Q857773

Cardioid Condenser Microphone Q857773

$23.99 $103.94
Skip to product information
Cardioid Condenser Microphone Q857773
  • Cardioid Condenser Microphone Q857773
  • Cardioid Condenser Microphone Q857773
  • Cardioid Condenser Microphone Q857773
  • Cardioid Condenser Microphone Q857773
  • Cardioid Condenser Microphone Q857773
  • Cardioid Condenser Microphone Q857773
Cardioid Condenser Microphone Q857773

Cardioid Condenser Microphone Q857773

$23.99 $103.94
Shipping calculated at checkout.
Technically advanced large diaphragm tensioned specifically to provide smooth, natural sonic characteristicsExternally polarized (DC bias) true condenser design, Exceptionally low noise, wide dynamic range and high SPL capability for greatest versatilityTransformerless circuitry virtually eliminates low frequency distortion and provides superior correlation of high speed transientsPrecision machined, nickel plated brass, acoustic element baffle provides enhanced element stability and optimal sensitivityState of the art surface mount electronics ensure compliance with A T's stringent consistency and reliability standards

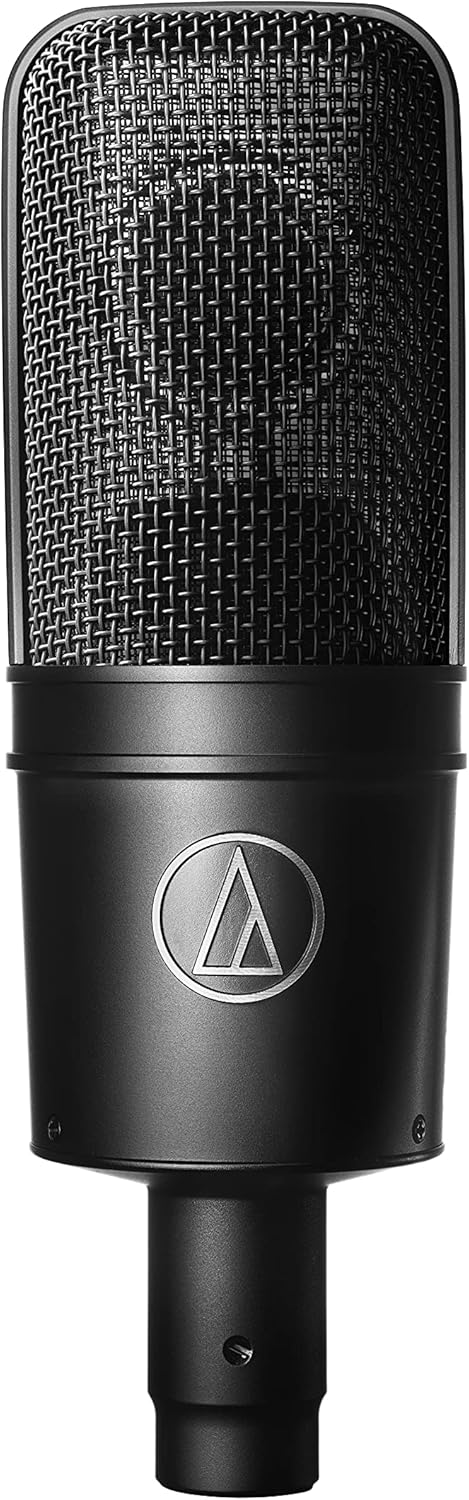

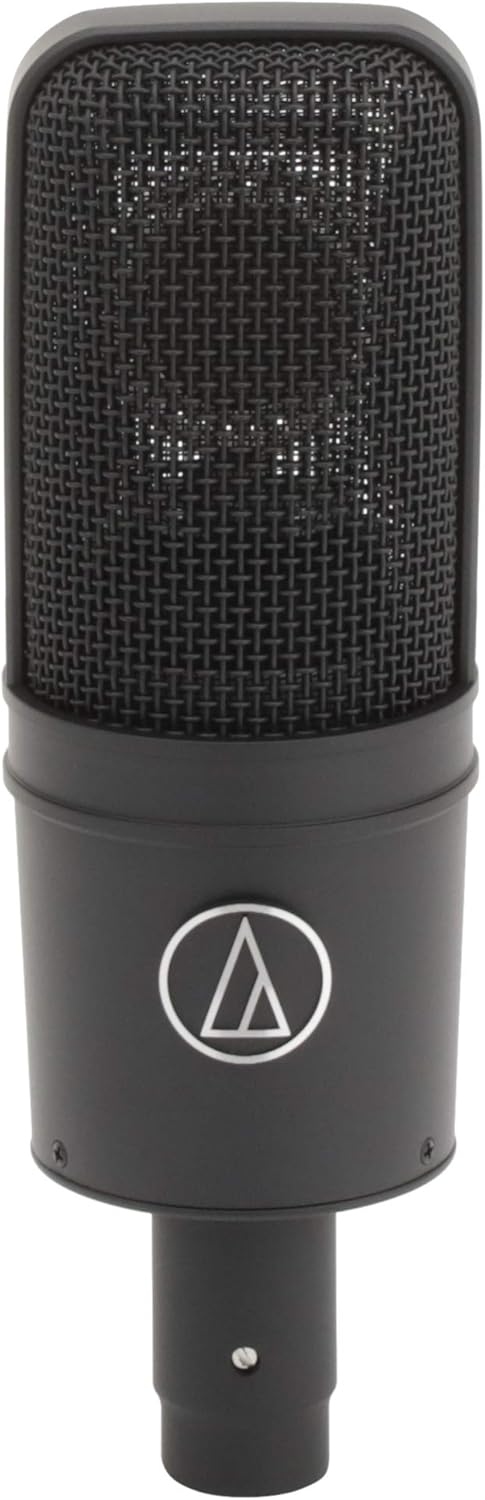

The AT4040 side-address condenser microphone features an advanced large diaphragm tensioned specifically to provide smooth, natural sonic characteristics. A marriage of technical precision and artistic inspiration, the AT4040 offers exceptionally low noise, wide dynamic range and high-SPL capability for greatest versatility. This ultra-consistent microphone may be used with confidence in a wide variety of studio and live miking applications, even under the stringent demands of digital recording systems. The AT4040’s low-noise circuitry is symmetrical and transformerless, resulting in exceptional transient response and clean output signals for transparent reproduction of even the most troublesome of instruments and sound effects.

AT4060 AT4047MP AT4047/SV AT4050 AT4033/CL AT4040
Element Externally polarized (DC bias) condenser Externally-polarized (DC bias) condenser Externally-polarized (DC bias) condenser Externally-polarized (DC bias) condenser Fixed-charge back plate, permanently polarized condenser Externally-polarized (DC bias) condenser
Polar Pattern Cardioid Cardioid, Omnidirectional, Figure-of-eight Cardioid Cardioid, Omnidirectional, Figure-of-eight Cardioid Cardioid
Frequency Response 20-20,000 Hz 20-18,000 Hz 20-18,000 Hz 20-18,000 Hz 30-20,000 Hz 20-20,000 Hz
Open Circuit Sensitivity -34 dB (19.9 mV) re 1V at 1 Pa -42 dB (7.9 mV), re 1V at 1 Pa -35 dB (17.7 mV) dB re 1V at 1 Pa -36 dB (15.8 mV), re 1V at 1 Pa -32 dB (25.1 mV) re 1V at 1 Pa -32 dB (25.1 mV) re 1V at 1 Pa
Impedence 200 ohms 100 ohms 250 ohms 100 ohms 100 ohms 100 ohms
Maximum Input Sound Level 150 dB SPL, 1 kHz at 1% T.H.D.; 149 dB SPL, 1 kHz at 0.5% T.H.D. 155 dB SPL, 1 kHz at 1% T.H.D.; 165 dB SPL, with 10 dB pad (nominal) 149 dB SPL, 1 kHz at 1% T.H.D.; 159 dB SPL, with 10 dB pad (nominal) 149 dB SPL, 1 kHz at 1% T.H.D.; 159 dB SPL, with 10 dB pad (nominal) 145 dB SPL, 1 kHz at 1% T.H.D.; 155 dB SPL, with 10 dB pad (nominal) 145 dB SPL, 1 kHz at 1% T.H.D.; 155 dB SPL, with 10 dB pad (nominal)
Dynamic Range 131 dB, 1 kHz at Max SPL 141 dB, 1 kHz at Max SPL 140 dB, 1 kHz at Max SPL 132 dB, 1 kHz at Max SPL 128 dB, 1 kHz at Max SPL 133 dB, 1 kHz at Max SPL
Signal-to-Noise Ratio 75 dB, 1 kHz at 1 Pa 80 dB, 1 kHz at 1 Pa 85 dB, 1 kHz at 1 Pa 77 dB, 1 kHz at 1 Pa 77 dB, 1 kHz at 1 Pa 82 dB, 1 kHz at 1 Pa
Phantom Power Requirements AT8560 power supply (120V/230V AC) 48V DC, 3.4 mA typical 48V DC, 3.0 mA typical 48V DC, 4.2 mA typical 48V DC, 3.2 mA typical 48V DC, 4.2 mA typical
Switches N/a Polar selection; Flat, roll-off; 10 dB pad (nominal) Flat, roll-off; 10 dB pad (nominal) Polar selection; Flat, roll-off; 10 dB pad (nominal) Flat, roll-off; 10 dB pad (nominal) Flat, roll-off; 10 dB pad (nominal)
